UAV Attached Sensor Device

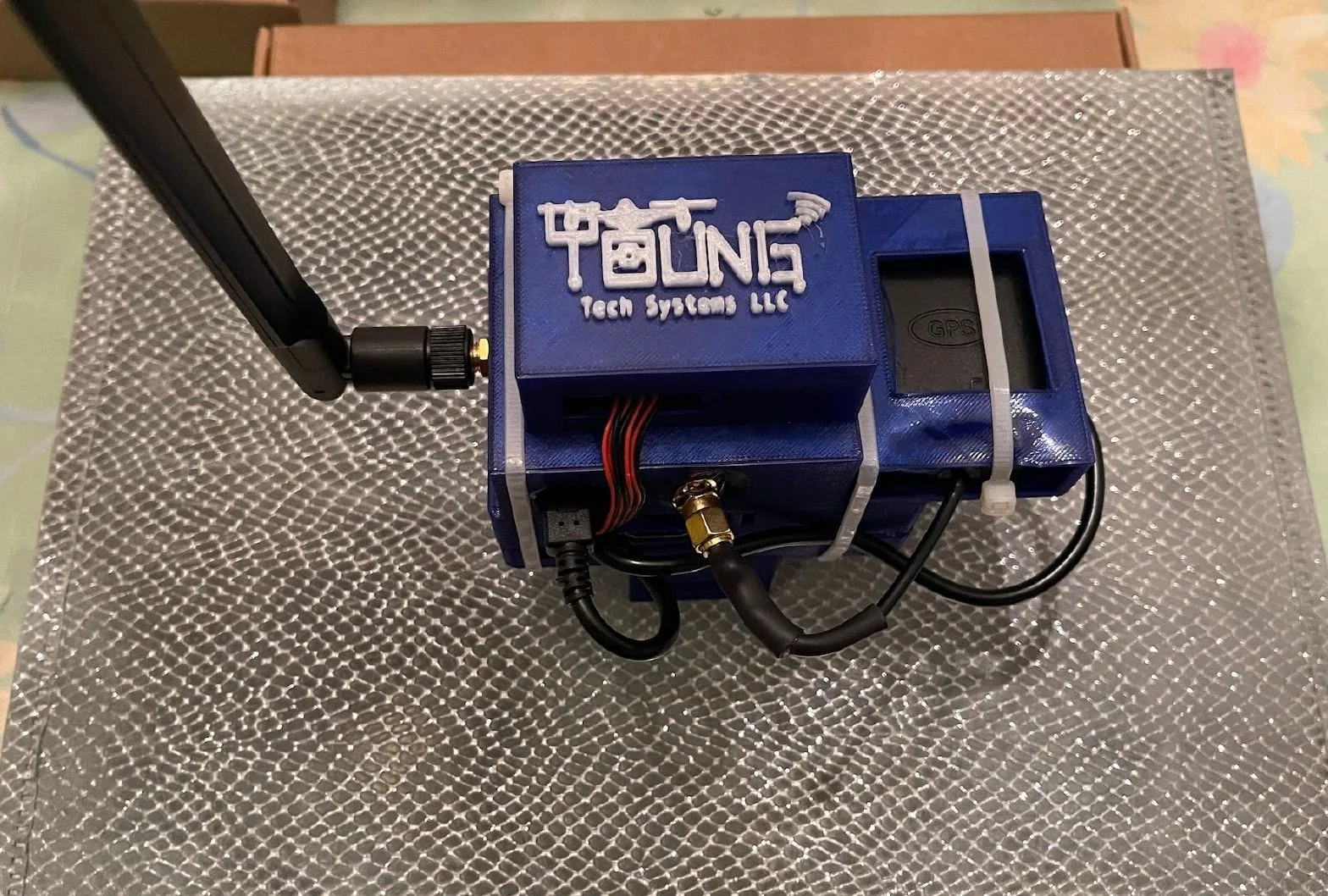

The UAV Attached Sensor Device
This UAV Attached Sensor Device will be used for site surveys to capture datatelemetry for the specific site during UAV flights. This device has several sensors to helpdetermine the environmental conditions of the site as well as Cellular and WiFi SignalStrength of the surrounding area. The device will be capturing telemetry data every secondand storing for each site. The following is the list of data that is captured during a typicalflight. Approximately 500-1000 datapoints collected per site, depending on flight time andarea of survey.-GPS, Easting/Northing, Cellular Signal Strength, WiFi Signal Strength, Humidity,Temperature, Pressure, NH3 Gas (pPM), Oxidizing Agents (pPM), Reducing Agents (pPM),PM1.0 ug/m3 ultrafine particles <=1 micron diameter, PM2.5 ug/m3 (combustionparticles_organic compounds_metals) between >1.0<=2.5 microns diameter, PM10 ug/m3(dust_pollen_mold spores) between >2.5<=10 microns diameter , PM1.0 ug/m3 (atmos env)<=1 micron diameter, PM2.5 ug/m3 (atmos env) between >1.0<=2.5 microns diameter,PM10 ug/m3 (atmos env) between >2.5<=10 microns diameter, >0.3um in 0.1L air, >0.5umin 0.1L air, >1.0um in 0.1L air, >2.5um in 0.1L air, >5.0um in 0.1L air, >10um in 0.1L air.
